Leadtime: Limited stock. 1-3 week backorder

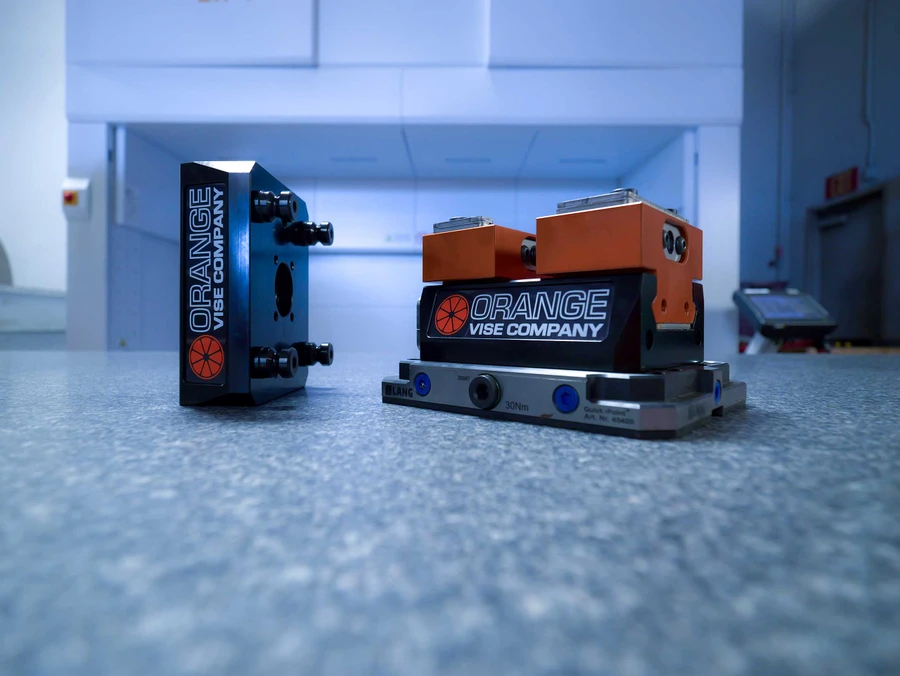

Introducing the NEW 2nd Generation HELIOS Vises – high clamping force, high rigidity, lightweight, low cost.
The latest innovation from Orange Vise, designed to revolutionize high mix, low volume workholding. With multiple patents pending, Helios brings a new era of flexibility to your shop.
With our 2nd generation iterative improvements, we've virtually eliminated jaw lift. Users will typically see jaw lift in the range of 0.0005" - 0.001" for second operations, and 0.001-0.002" for first operations.

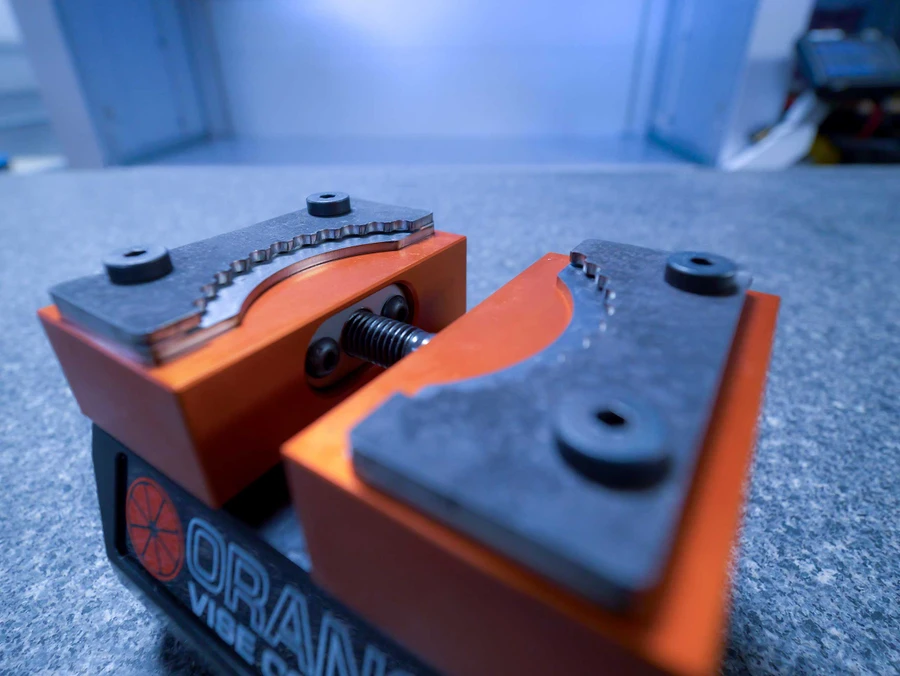

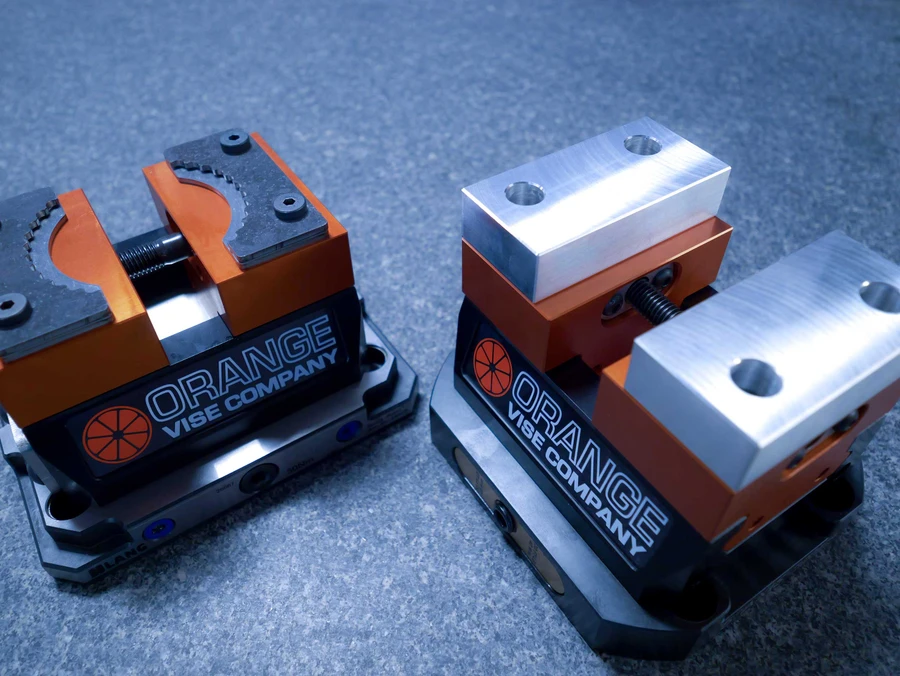

Our new master jaw system allows top jaws to be bolted from above, utilizing the standard bolt pattern for 4" and 6" vises, e.g. Monster Jaws™. Alternatively, design your own custom top jaw stack using laser cut components from suppliers like SendCutSend®.
Features
- Anodized aluminum body
- Anodized aluminum jaws
- Stainless steel adjustable preload plate
- Stainless steel jaw fixing plate

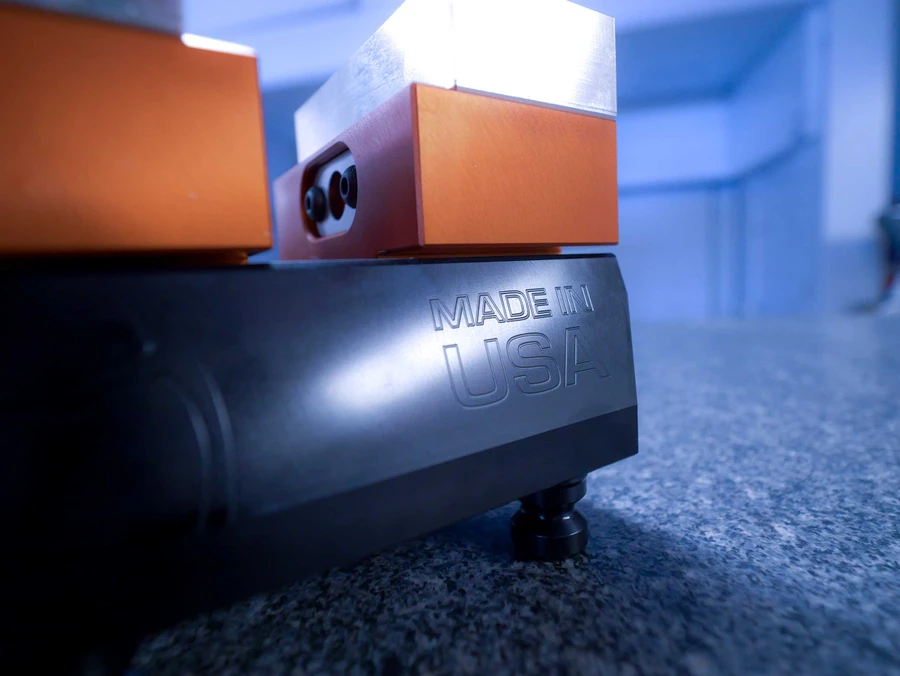

- Made in the USA
Why it Works
- Patent pending design eliminates stress risers from the system
- Vise body is FEA optimized to slightly flex to provide large contact patches between components
- Minor wear over time is compensated with an adjustable plate
Features:
| Body | Helios aluminum body - available in 2 lengths |
| Jaws |
|
| ZPS Ready |
|
| Fixed Jaw |
|
| Clamping Force |
|
| Jaw Lift |
|
| Solid Models |
|
