Dimensions & Capacities

GREY DIMENSIONS are universal across 4.5" and 6" Orange Vises in all lengths.

ORANGE DIMENSIONS AND CAPACITIES vary among vise models (see table below).

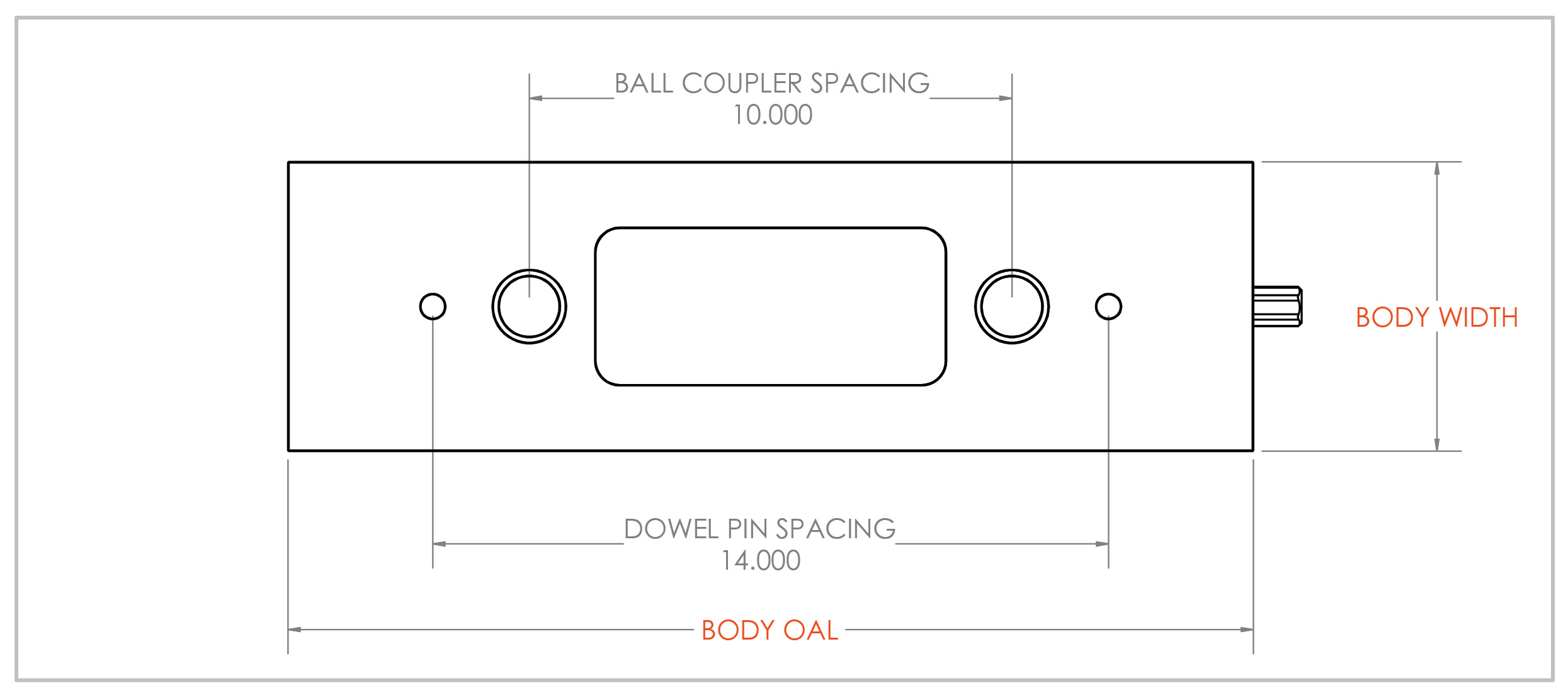

Body Dimensions

Vise Size (Nominal) 6"x16" 6"x17.5" 6"x20" 6"x26" 4.5"x16" 4.5"x17.5" 4.5"x20.0"
Body Width 6" 6" 6" 6" 4.5" 4.5" 4.5"
Body Overall Length 16" 17.5" 20" 26" 16" 17.5" 20"

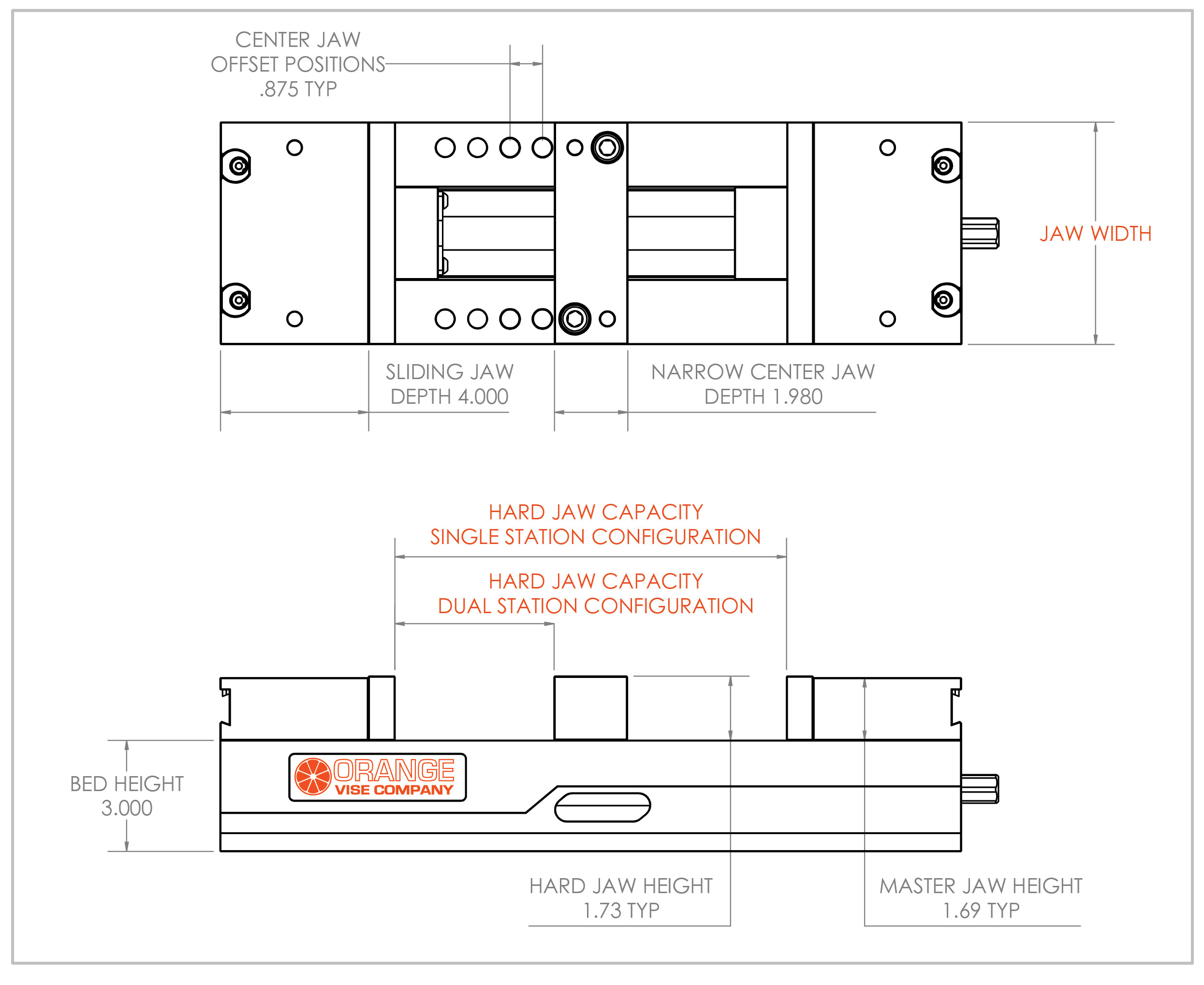

Jaw Capacities with Included Hard Jaws

Vise Size (Nominal) 6"x16" 6"x17.5" 6"x20" 6"x26" 4.5"x16" 4.5"x17.5" 4.5"x20.0"
Jaw Width 5.88" 5.88" 5.88" 5.88" 4.63" 4.63" 4.63"
Hard Jaw Capacity -
Dual Station
2.3" 3.1" 4.3" 7.3" 2.3" 3.1" 4.3"
Hard Jaw Capacity -
Single Station
6.6" 8.1" 10.6" 16.6" 6.6" 8.1" 10.6"

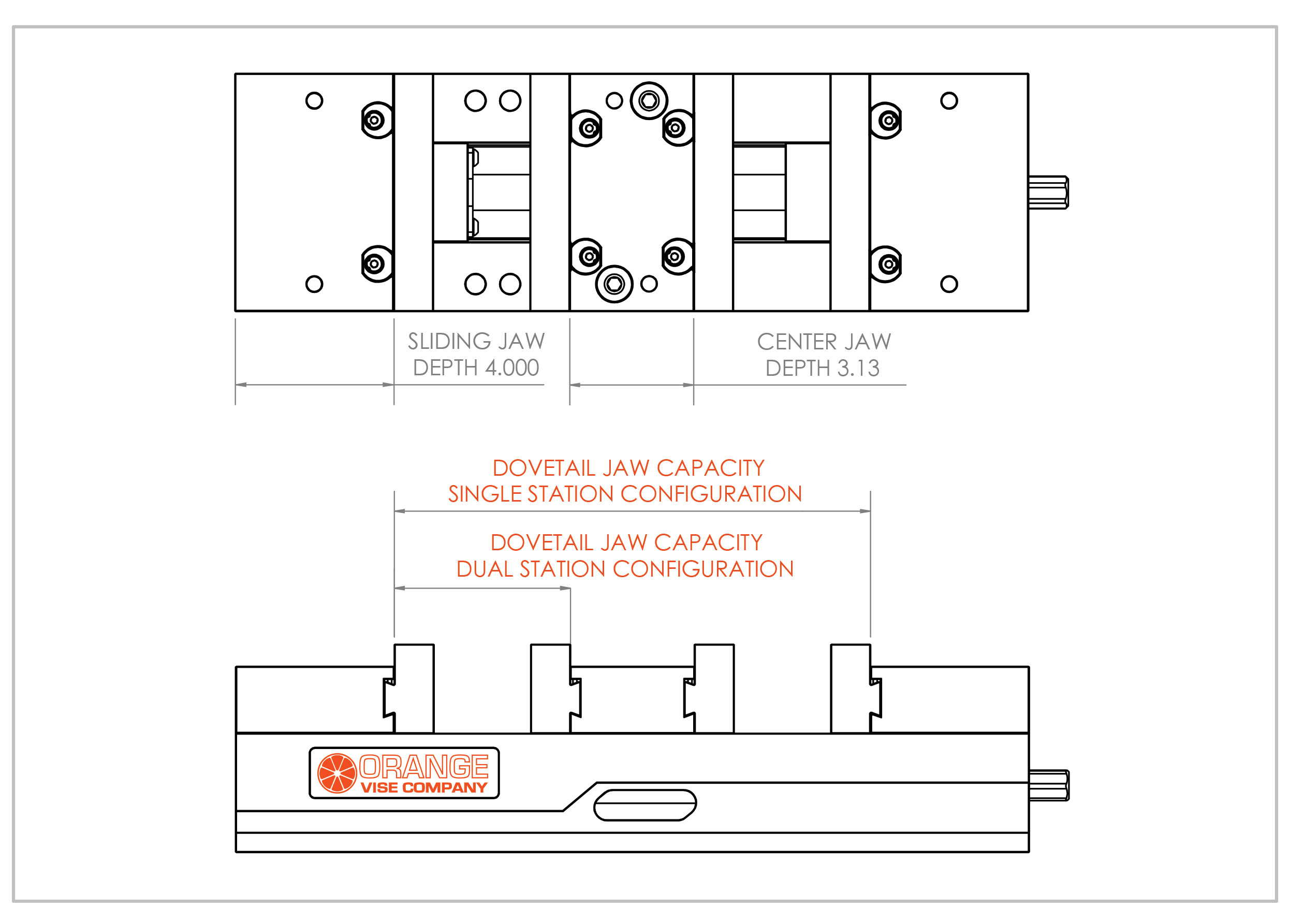

Jaw Capacities with Dovetailed Jaws

Vise Size (Nominal) 6"x16" 6"x17.5" 6"x20" 6"x26" 4.5"x16" 4.5"x17.5" 4.5"x20.0"
Dovetail Jaw Capacity -
Dual Station *
2.5" 3.2" 4.5" 7.5" 2.5" 3.2" 4.5"
Dovetail Jaw Capacity -
Single Station *
8" 9.5" 12" 18" 8" 9.5" 12"

* Dimension does not include the thickness of CarveSmart jaws, which varies from 1/2" to 2". Please note that some CarveSmart jaw combinations will not work with 16" length vises in dual station configuration.

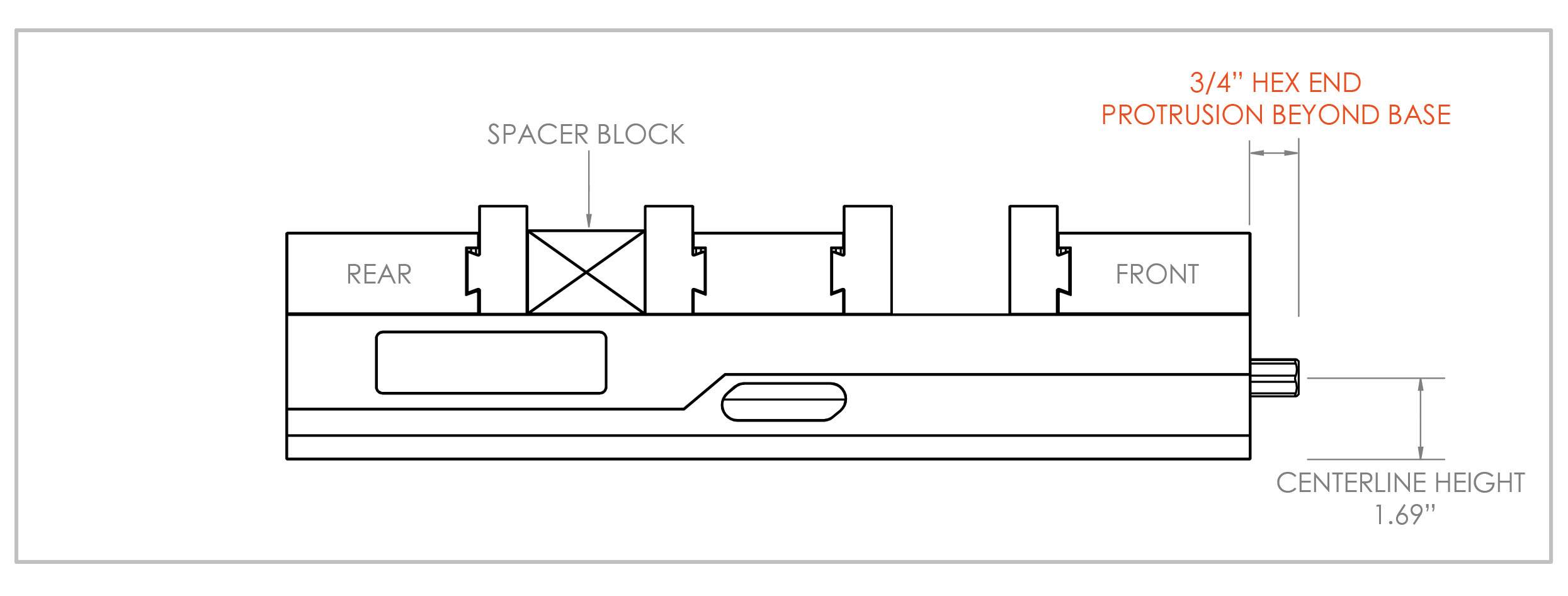

3/4" Hex End


Vise Size (Nominal) 6"x16" 6"x17.5" 6"x20" 6"x26" 4.5"x16" 4.5"x17.5" 4.5"x20.0"
3/4" Hex End Protrusion -
Both Jaws Fully Open
1.0" 0.75" 0.75" 0.75" 1.0" 0.75" 0.75"
3/4" Hex End Protrusion -
Maximum*
4.63" 4.13" 4.13" 4.13" 4.63" 4.63" 4.63"

* Maximum hex end protrusion occurs when the front sliding jaw (closest to hex end) is fully open, while the rear sliding jaw (furthest from hex in) is fully closed. If this is undesirable for the application, e.g. a pallet changing machine, avoid this by placing a spacer block between the rear sliding jaw (furthest from hex end) and the center jaw. In single station configuration, fix the rear sliding jaw, not the front sliding jaw.
